Through thick and thin…

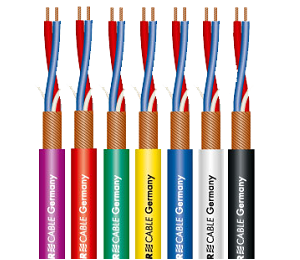

the new SC-Scuba 14 HIGHFLEX will be right by your side. It is very thin, space-saving, flexible and ideally suited for connectors with a small diameter, e.g. LEMO patchboards, mini jacks, RCA etc. (and thus perfect for patch cables) and rack cabling. Their diameter and wire construction has been designed according to common broadcasting standards and a dense copper mesh screen with90 % shielding coverage protects the cable from interference. For reasons of clarity we offer the SC-Scuba 14 HIGHFLEX in five different jacket colors.
Advantages:
· Very thin, high tensile strength and flexibility
· Available in five different colours
· Good shielding due to the dense Cu mesh screen
· Affordable price
Application:
· Patch cabling (LEMO), gooseneck microphone cable
· Home recording
· Rack and console cabling
| Name | SC-Scuba 14 |
| Colour | black |
| Properties | OFC oxygen free copper |
| Properties | Analog |
| Application area | Studio / Broadcast |
| Colour detailed | black |
| Construction | (2LI2Y0,14mm²)CY |
| Construction (audio) | (2LI2Y0,14mm²)CY |
| Jacket material | PVC |
| Jacket material (audio) | PVC |
| Jacket Ø [mm] | 3,8 |
| Jacket Ø (audio) [mm] | 3,8 |
| Number of Channels (audio) | 1 |
| Inner conductor (audio) | 2 |
| Inner conductor (audio) [mm²] | 0,14 |
| Inner conductor Ø (audio) [mm] | 0,42 |
| AWG (audio) | 26 |
| Shielding | Copper braiding shield., tin-plated, with 0.10 mm indiv. strand |
| Shielding (audio) | Copper braiding shield., tin-plated, with 0.10 mm indiv. strand |
| Copper strands (audio) | 18 |
| Conductor insulation material | PE |
| Wire insulation material (audio) | PE |
| Signal transmission | symmetrical |
| Shielding factor [%] | 90 |
| Packing | 100 m spool |
| Packing | 500 m spool |
| Style variant | round |
| Application | Patch & Microphone Cable |
| Conductor insulation Ø [mm] | 1,15 |
| Conductor insulation Ø (audio) [mm] | 1,15 |
| Width [mm] | 3,8 |
| Height [mm] | 3,8 |
| Temperature min. [°C] | -25 |
| Temperature max. [°C] | 70 |
| Weight per 1 m [g] | 25 |
| Fire load per m [kWh] | 0,09 |
| UV-resistant | yes |
| Impedance [Ω] | 100 |
| Surge impedance (audio) [Ω] | 100 |
| Insulation resist. per 1 km [GΩ] | 1 |
| Leakage resistance at 1 km (audio) [GΩ] | 1 |
| Cond. resistance per 1 km [Ω] | 135 |
| Conductor resistance at 1 km (audio) [Ω] | 135 |
| Shield. resistance per 1 km [Ω] | 30 |
| Capac. cond./cond. per 1 m (audio) [pF] | 65 |
| Capac. cond./shield. per 1 m (audio) [pF] | 130 |
